Spring calculation rethought - perspective through FKM guideline

Spring calculation rethought - perspective through FKM guideline

Normal price €790,00
Normal price Retail price €790,00
Customer discount Sold out

plus the statutory VAT



Use the participant's e-mail address.

Show full details

Contents & main topics

1. basics

Fatigue strength and vibration resistance of springs.

Loads, stresses, tensions.

Principle of local fatigue strength.

Fatigue strength diagrams (Goodman and Haigh diagrams).

Damage accumulation calculation.



2. spring types & examples

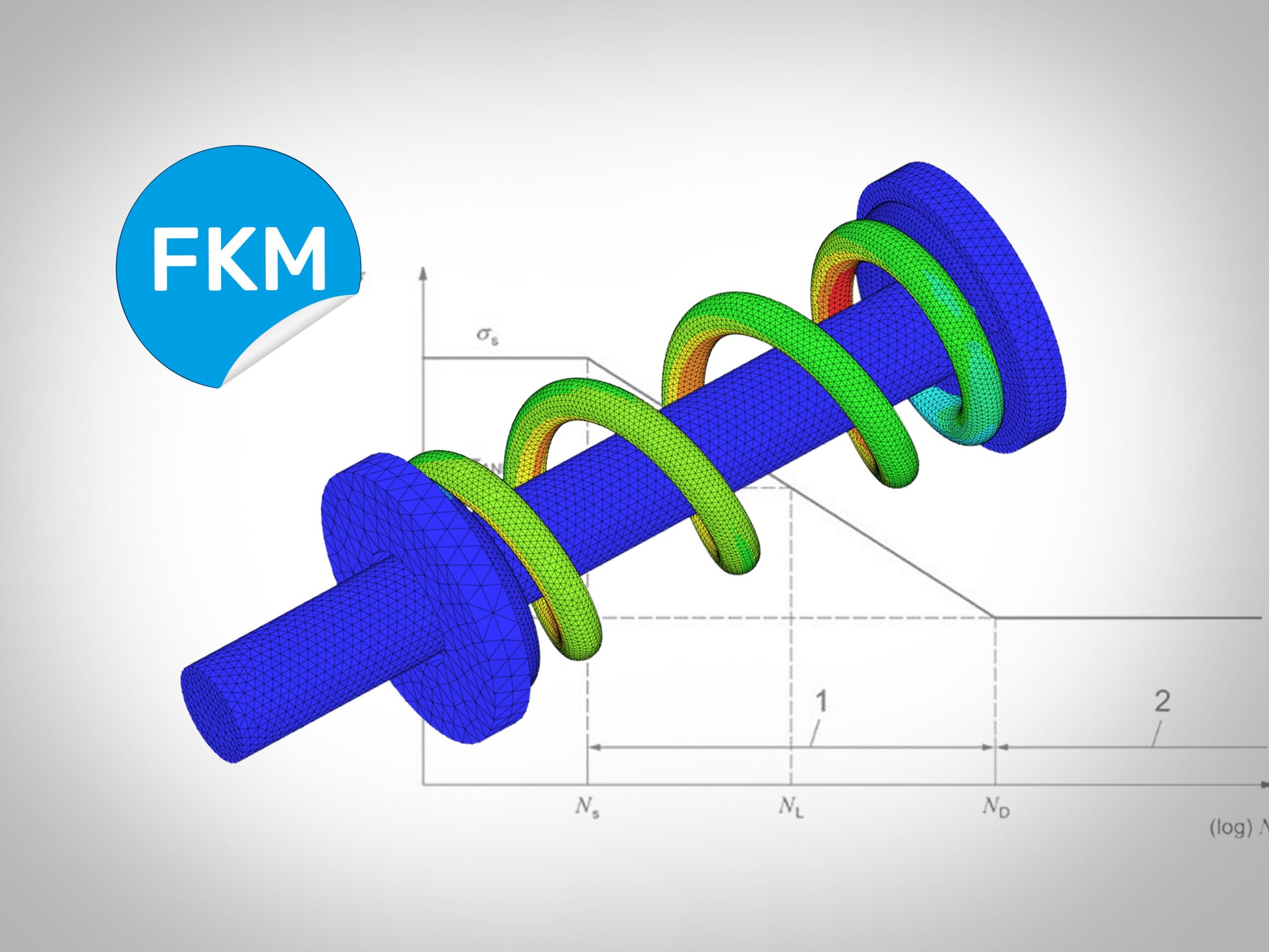

Helical compression spring: shear stresses, influence of geometry, material, roughness, number of cycles.

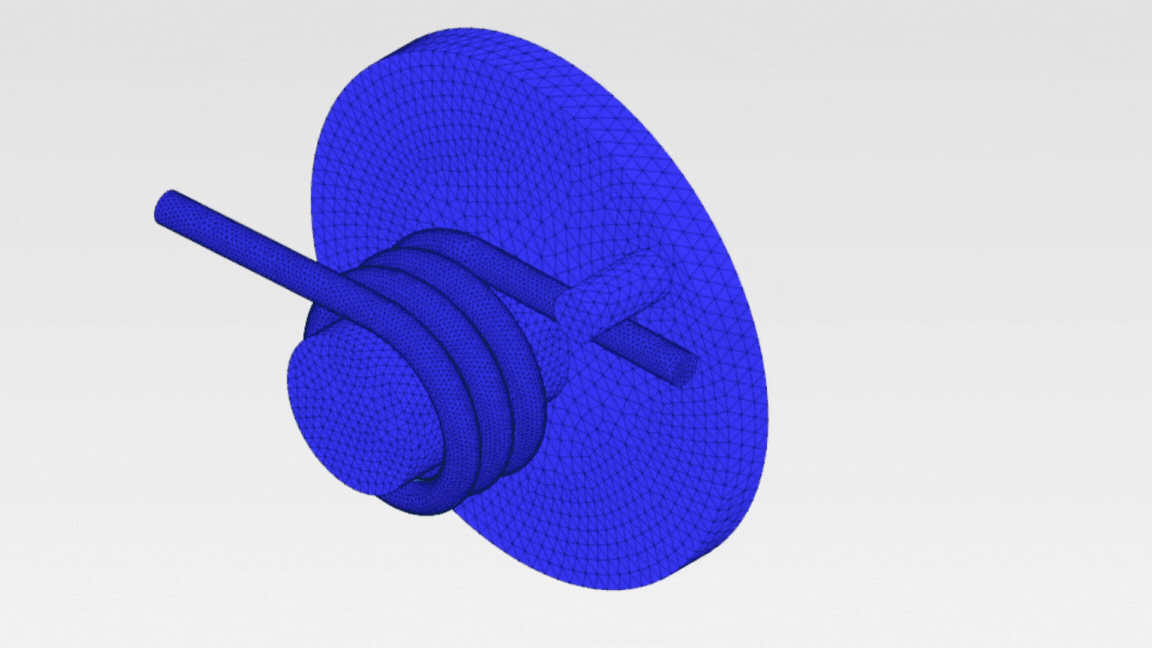

Torsion spring: Normal stresses according to EN 13906-3, fracture-critical areas.

Other spring elements: Procedure for torsion, bending or combined stress.



3. factors influencing voltage amplitudes

Material properties, microstructure, chemical composition.

Component geometry, surface roughness, residual stresses.

Medium voltage and number of cycles.



4. practical evaluation

Methods for determining stresses and degrees of utilization.

Safety concepts according to FKM.

Comparison: Classic dimensioning vs. FKM guideline.


Prices

  • First participant of a company: 790,- €*
  • Each additional participant from the same company: 580,- €*
  • University members (lecturers and students): 295,- €

All prices plus VAT
(* As an MDESIGN service customer, you benefit from a customer advantage of 10%.)




Documents

You will receive detailed seminar documentation and a certificate of attendance.


Your speaker

Dr.-Ing. René Reich

  • Degree in mechanical engineering at the Technical University of Ilmenau and doctorate in the field of cyclically stressed springs
  • Seminar leader with many years of experience for leading spring manufacturing companies at home and abroad
  • Project manager, research assistant and lecturer for special tasks, member of the TUI's Wire and Springs research group


Any questions? Here you can find all information about our online seminar!



MDESIGN knowledge update online seminars always take place in the morning and always live - for the best possible integration into your day-to-day work and the best possible exchange. Ask your questions directly to speakers with practical experience and benefit from the intensive exchange of knowledge. You can consolidate your learning success with detailed training documents.
